ZP
ZQU
Eisele Agitators since 1887

PTO Mixers ZP/ZQU

Description

With stirring rod lengths from 3.5 m to 6.0 m and a hydraulically adjustable articulated frame, the Eisele ZP PTO shaft agitators are the ideal flexible mobile solution for long ranges and immersion depths. The Eisele PTO shaft agitators owe their outstanding product position to the highest manufacturing standards combined with extensive practical experience. Power range: 33.0 kW and 48.0 kW Overall lengths: from 3.5 m to 6.0 m

An attachable electric drive (ZQUE) also makes stationary use possible.

The advantages at a glance:

  • Flexible use

  • Hydraulically adjustable

  • Great immersion depths

  • Highest manufacturing standards

  • Different lengths can be selected

  • Ideal mobile solution

Eisele
Models PTO Mixers

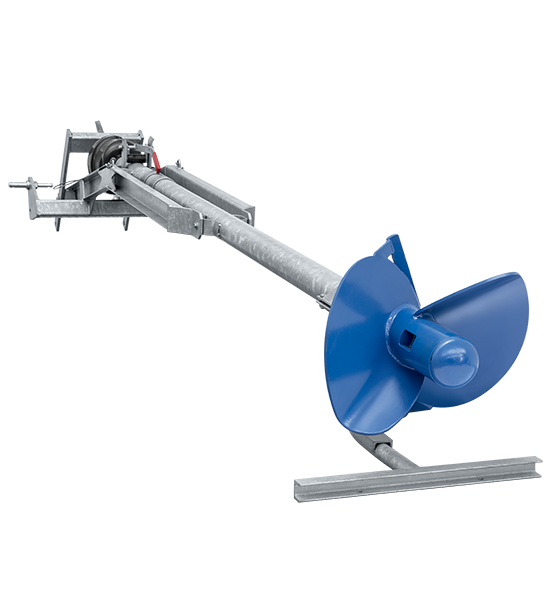

PTO Mixer ZP
Our types
ZP
Description

The Eisele PTO shaft agitators ZP are the ideal flexible mobile solution for large ranges and immersion depths in open and closed containers.

Furnishing:

  • Three-point hitch for hitch
  • Optionally with mechanical or hydraulic adjustment
  • Broad blade propeller
  • Stirring rod and protective bracket in stainless steel
Performance data
33,0 kW and 48,0 kW
Fields
Agriculture
Application area
Open lagoon
Tank with concrete ceiling
Open tank
Steel tank
PTO Mixer ZP 120
Our types
ZP 120
ZP 120
Description

The Eisele PTO shaft agitators ZP 120 are the ideal flexible mobile solution for long ranges and immersion depths in open containers and lagoons.

The PTO agitator ZP 120 was developed to fully exploit the advantages of modularity: The modular design covers three lengths (6 m, 7 m, 8 m), which means that the user can choose the optimal length depending on the case and the required operating depth.

Furnishing:

  • Various 2-blade propellers in stainless steel
  • Maintenance-free bearings in the rake
  • Modular design
  • Rear hydraulics category 3
Performance data
From 88 kW
Fields
Agriculture
Application area
Open lagoon
Open tank
PTO Mixers for Channels ZQU
Our types
ZQU
Description

The Eisele power take-off shaft agitator ZQU is ideally suited for slurry channel circulation systems, also known under the term "slalom system".

Furnishing:

  • Three-point suspension with mechanical or hydraulic adjustment
  • Optional: mounting bracket for stationary installation
  • Double screw (galvanized / stainless steel)
  • Stirring rod and protective bracket in stainless steel
  • Nozzle with protective ring
  • Slide rails with mounting frame (galvanized / stainless steel)
  • Optionally with plug-in electric drive up to 15 kW
Performance data
With PTO:
33,0 kW and 48,0 kW

With electric motor:
11,0 kW and 15,0 kW
Fields
Agriculture
Application area
Slalom system
